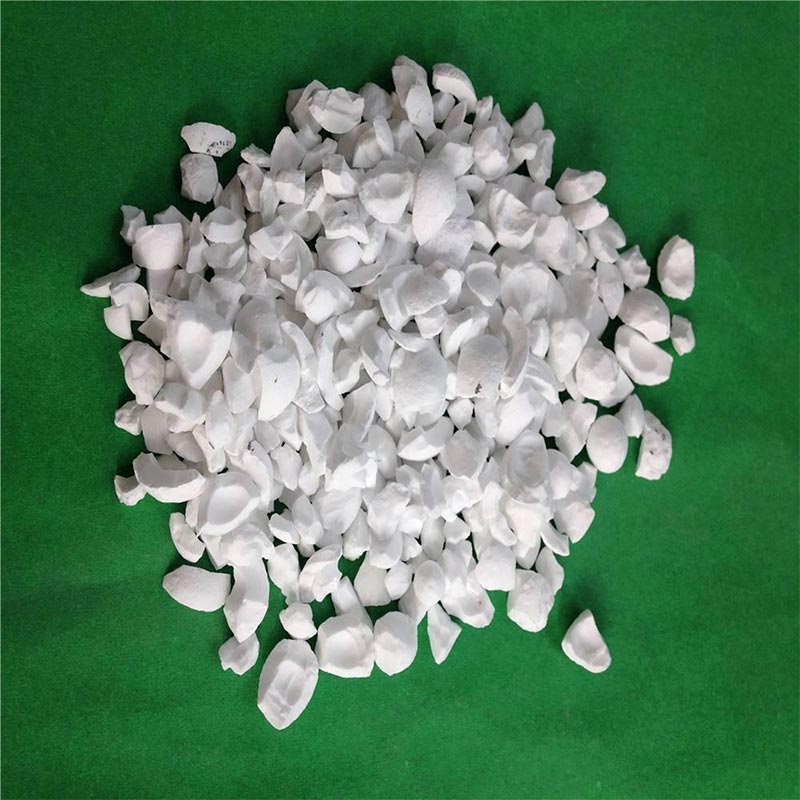

Tabular Alumina

Tabular alumina is a kind of pure sintered alumina,which is sintered and completely shrink without adding any additive ,with coarse crystals and well-developed α- Al2O3 crystal structure.

Product Details

Tabular alumina is a kind of pure sintered alumina,which is sintered and completely shrink without adding any additive ,with coarse crystals and well-developed α- Al2O3 crystal structure.The tabular crystal structure is characterized by narrow pores,with more closed porosity, almost the same apparent porosity compare with fused corundum ,high purity, good stability volume density , tiny refiring shrink.After high temperature treament,tabular alumina is used for refractoris and castable characterized by good thermal shock stability and flexural strength.

Applications

a) Refractory materials
WFA refractory castables,ramming mass,hook refractory material,refractory brick, and other refractories;

Function Guarantee
Chemical Composition% AL2O3 99.0%min
Na2O 0.40%max
SiO2 0.15%max
Fe2O3 0.10%max
Bulk Density g/cm3 3.50min
Apparent porosity % 5.0max
Water Absorption % 1.5max
Magnetic % 0.02max
Grit size(mm) 5-8 3-5 1-3 0-1mm
Fine grit 200mesh,325mesh

Packing

1000kg or 1250kg bulk bags

Bulk bag on pallets

25kg woven bag in bulk bags

25kg paper bag on pallets
