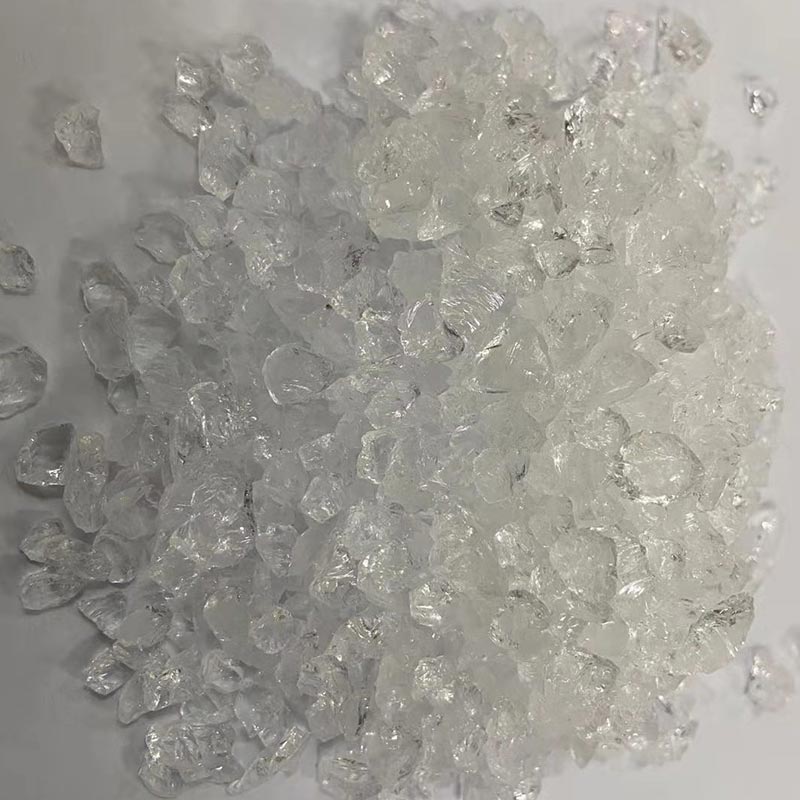

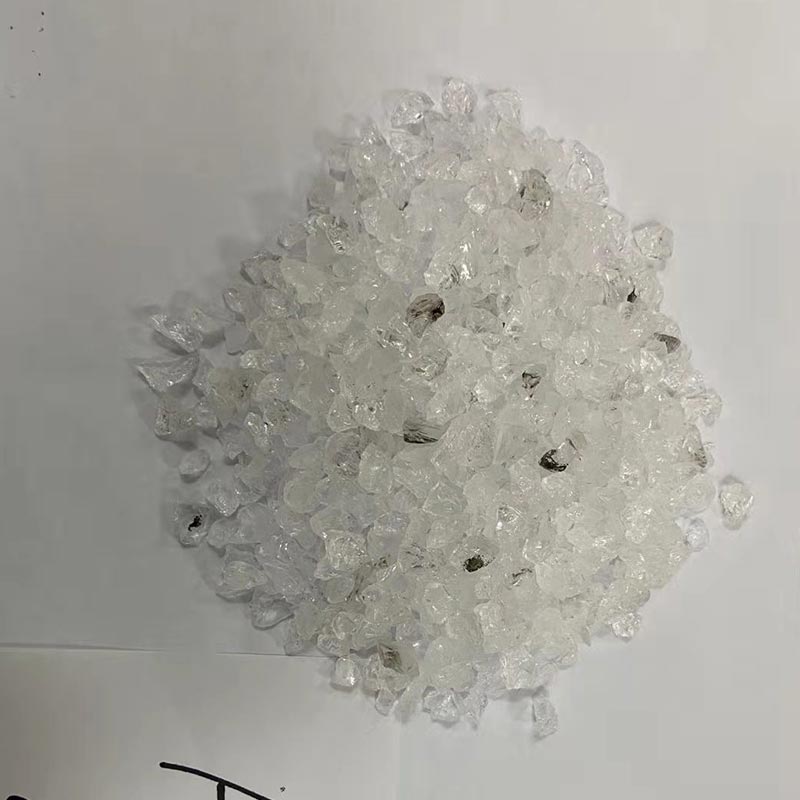

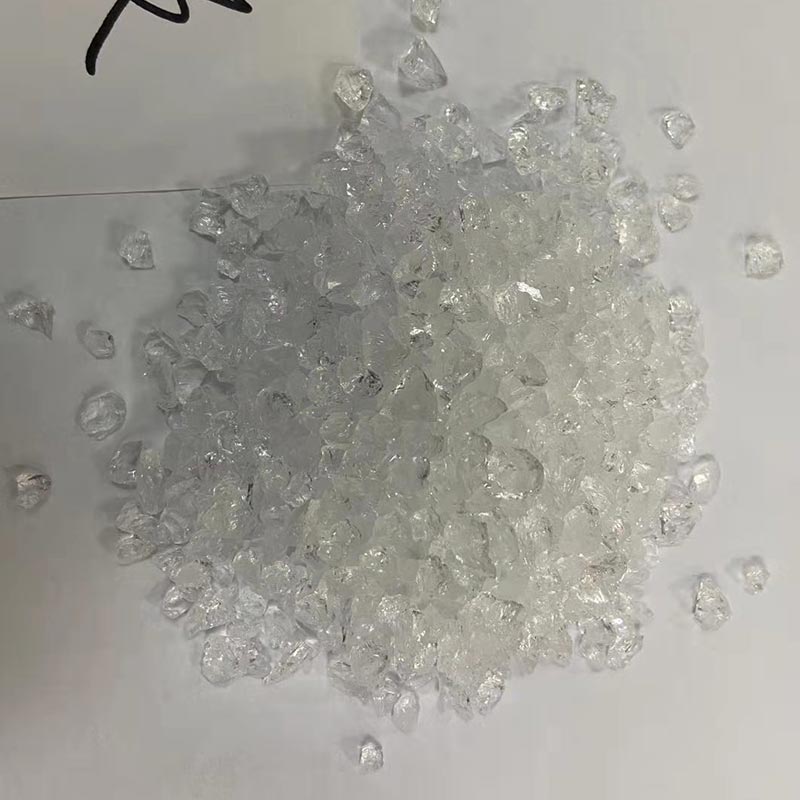

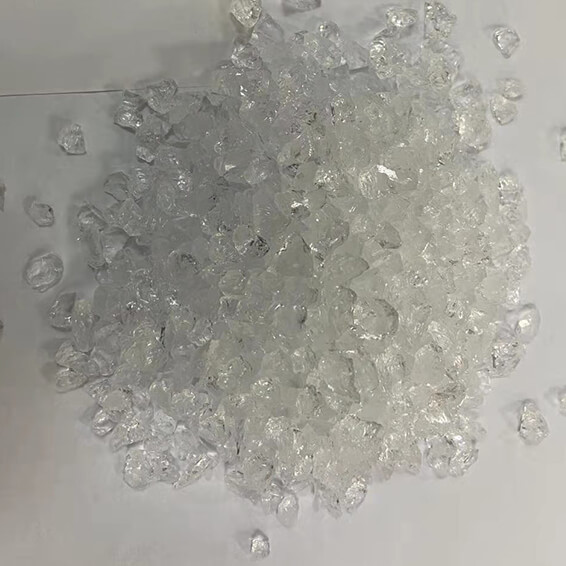

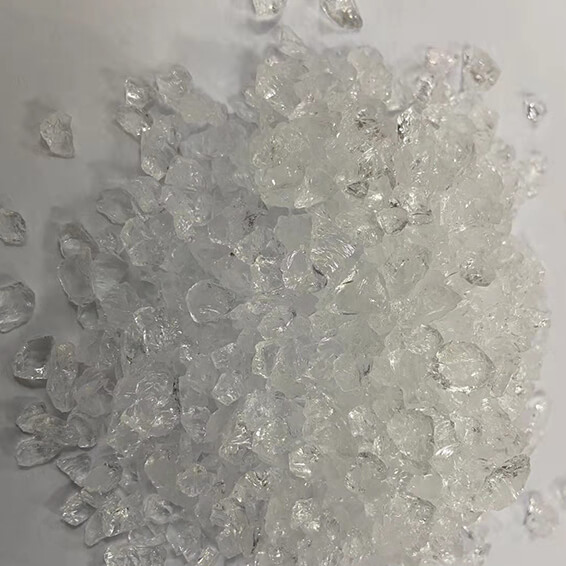

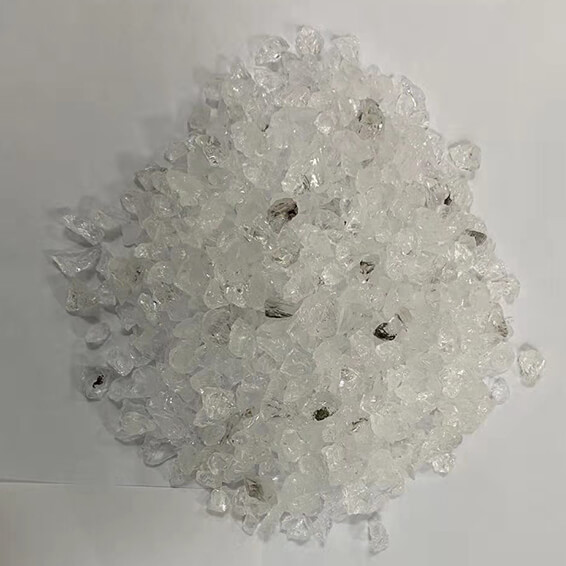

Fused Silica Grain
Fused silica is produced by refined quartz sand melted at high temperature, then crushed and graded manually after rapid cooling, and then processed into various granularity fused quartz sand powder by advanced processing technology and processing equipment, through material collision crusher, magnetic separator, shaping machine, screening machine, airflow mill, vibration mill, classifier and other processes.
Product Details
Fused silica is produced by refined quartz sand melted at high temperature, then crushed and graded manually after rapid cooling, and then processed into various granularity fused quartz sand powder by advanced processing technology and processing equipment, through material collision crusher, magnetic separator, shaping machine, screening machine, airflow mill, vibration mill, classifier and other processes. The product has no intermediate impurities in the process of processing, basically guaranteeing the original ingredients unchanged. Fused silica in comparison to crystalline silica is purer, and has a lower specific gravity and linear coefficient of thermal expansion. Main contents are SiO2 (99.9-99.98%) and Fe2O3 (0.002%max) ,the grain size can be produced according to requirements.
Applications
a.) Refractory materials
b.) Glass industry,water filteration
| Item | Grade 1 | Grade 2 | Grade 3 | Grade 4 |
| SiO2 | 99.9%min | 99.8%min | 99.7%min | 99.5-99.6min |
| Fe2O3 | 30ppm | 60ppm | 100ppm | 150-300ppm |
| Appearance | White Granule or White Powder |
| Specific Gravity | 2.21 |
| Hardness( Mohs) | 7.0 |
| PH | 5-7 |
| Grain size available | 0.5-1, 0-1,1-3,3-5,5-8,3-10mm-4+10mesh -10+20mesh-16+48mesh 200F 325F |
Packing
1000kg big bags
Big bag on pallets
25kg woven bag in big bags
25kg small bag on pallets
